712 F/2L-005 | ebm-papst

DC axial fan, 12 V, 70 x 70 x 15 mm, 28 m³/h, 25 dB, slide bearing, ebm-papst 712 F/2L-005

Order No.: 90B1034
EAN: 4099889480375
MPN:
712 F/2L-005
9292504005
Series: 700 F

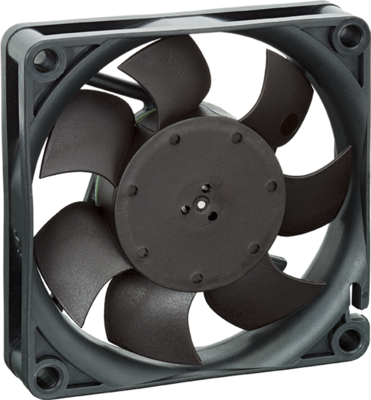

712 F/2L-005 ebm-papst Axial Fans Image 1

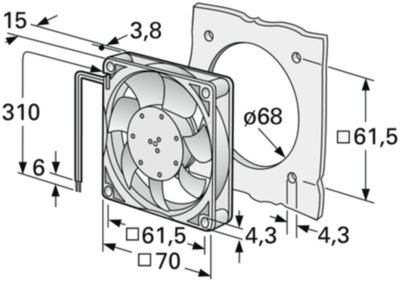

712 F/2L-005 ebm-papst Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
56.0014 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
56.00 € *
Price list
Quantity
Price per unit*
1 pcs.
56.0014 €
5 pcs.
52.6337 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, 712 F/2L-005, EBM-PAPST

The 712 F/2L-005 is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.

Features

  • Connection via single strands AWG 24 to AWG 28, TR 64, bared and tin-plated
  • Protected against reverse polarity and blocking
  • Electronic commutation completely integrated
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Ausführung DC-Axiallüfter
Breite 70 mm
Drehzahl 3300 1/min
Höhe 70 mm
Lagerart Gleitlager
Leistungsaufnahme 0.6 W
Nennspannung 12 V
Schalldruckpegel 25 db
Tiefe 15 mm
Volumenstrom 28 m³/h
Logistics
Ursprungsland HU
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
