8212 JH3 | ebm-papst

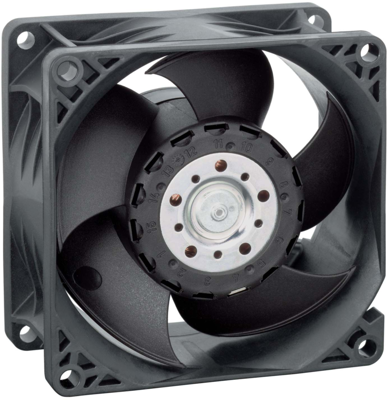

DC axial fan, 12 V, 80 x 80 x 38 mm, 190 m³/h, 66 dB, ball bearing, ebm-papst 8212 JH3

Order No.: 90B1945
EAN: 4099889483345
MPN:
8212 JH3
9692910193
Series: 8200 JH
ebm-papst
8212 JH3 ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
48.7543 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
48.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
48.7543 €

DC Axial fan, 8212 JH3, EBM-PAPST

The 8212 JH3 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.

Features

  • Cable connection is with single strands AWG 22 and is stripped and tinned
  • Direction of rotation left, viewed on the rotor
  • Max. torque when mounted across both mounting wire outlet corner is 50 Ncm
  • Material housing: plastic
Technical specifications
Version DC axial fan
Width 80 mm
speed 12000 1/min
Height 80 mm
Type of bearing ball bearing
Power consumption 26 W
Rated voltage 12 V
Sound pressure level 66 db
Depth 38 mm
Volume flow 190 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
