8214 J/2H3 | ebm-papst
DC axial fan, 24 V, 80 x 80 x 38 mm, 190 m³/h, 66 dB, ball bearing, ebm-papst 8214 J/2H3
Unit Price (€ / pc.)
85.1921 € *
Available: 36 pcs.
Leadtime: 6 Weeks **
Total Price:
85.19 € *
Price list
Quantity
Price per unit*
1 pcs.
85.1921 €
5 pcs.
80.0870 €
15 pcs.
77.0168 €
50 pcs.
73.6015 €
150 pcs.
70.5432 €
*incl. VAT plus shipping costs
**Subject to prior sale

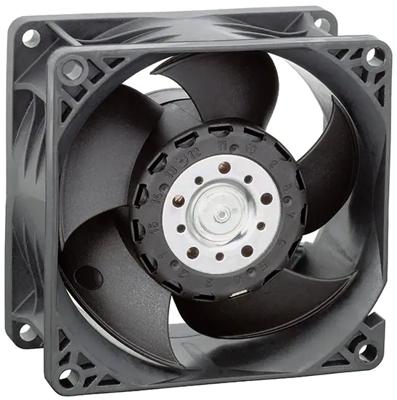

DC Axial fan, 8214 J/2H3, EBM-PAPST
The 8214 J/2H3 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Electrical connection with individual stranded wires AWG 22, which are stripped and tinned
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
- Protected against reverse polarity and blocking
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 80 mm | |
| Drehzahl | 12000 1/min | |
| Höhe | 80 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 25 W | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 66 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 190 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
