8214 J/H3 | ebm-papst

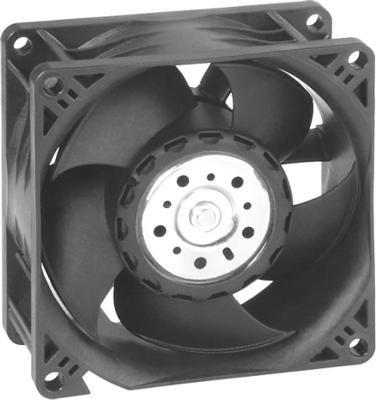

DC axial fan, 24 V, 80 x 80 x 38 mm, 190 m³/h, 66 dB, ball bearing, ebm-papst 8214 J/H3
Unit Price (€ / pc.)
95.5927 € *
Available: 30 pcs.
Leadtime: 1 Week **
Total Price:
95.59 € *
Price list
Quantity
Price per unit*
1 pcs.
95.5927 €
5 pcs.
89.8569 €
15 pcs.
86.4178 €
50 pcs.
82.5860 €
150 pcs.
79.1469 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 8214 J/H3, EBM-PAPST
The 8214 J/H3 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
- Protected against reverse polarity and blocking
Technical specifications
| Version | DC axial fan | |
| Width | 80 mm | |
| speed | 12000 1/min | |
| Height | 80 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 26 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 66 db | |
| Depth | 38 mm | |
| Volume flow | 190 m³/h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
