8312 NHL | ebm-papst

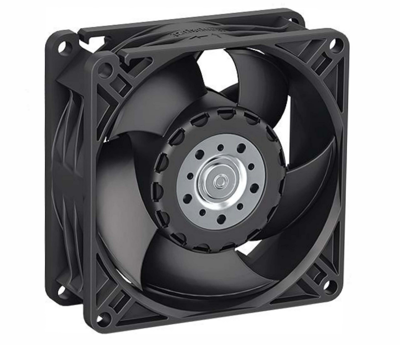

DC axial fan, 12 V, 80 x 80 x 32 mm, 70 m³/h, 39 dB, ball bearing, ebm-papst 8312 NHL
Unit Price (€ / pc.)
32.844 € *
Available: 0 pcs.
Next delivery: 30 pcs. on 2025-05-11
Leadtime: On Request **
DC Axial fan, 8312 NHL, EBM-PAPST
The 8312 NHL is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Housing GRP1
- Connection via single strands AWG 26, TR 64, bared and tin-plated
- With protection class: IP54/IP68
- Moisture protection
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 80 mm | |
| Drehzahl | 4600 1/min | |
| Höhe | 80 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 2.9 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 39 db | |
| Tiefe | 32 mm | |
| Volumenstrom | 70 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
