8412 NGH | ebm-papst

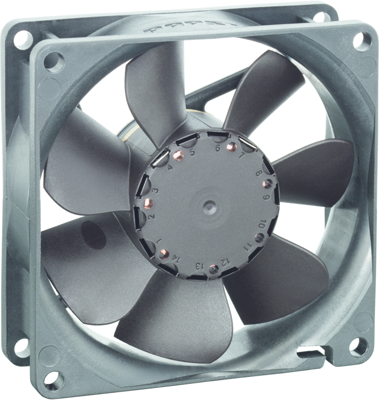

DC axial fan, 12 V, 80 x 80 x 25 mm, 79 m³/h, 37 dB, ball bearing, ebm-papst 8412 NGH
Unit Price (€ / pc.)
36.1641 € *
Available: 154 pcs.
Next delivery: 50 pcs. on 2025-12-17
Leadtime: 2 Weeks **
Total Price:
36.16 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1641 €
5 pcs.
33.9864 €
15 pcs.
32.6893 €
50 pcs.
31.2494 €
150 pcs.
29.9404 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 8412 NGH, EBM-PAPST
The 8412 NGH axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Extra high power
- It has electronic reverse pole blocking and overload protection
Technical specifications
| Version | DC axial fan | |
| Width | 80 mm | |
| speed | 3600 1/min | |
| Height | 80 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 1 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 37 db | |
| Depth | 25 mm | |
| Volume flow | 79 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
