8414 N/2GM | ebm-papst
DC axial fan, 24 V, 80 x 80 x 25 mm, 58 m³/h, 26 dB, slide bearing, ebm-papst 8414 N/2GM
Unit Price (€ / pc.)
44.4584 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
44.46 € *
Price list
Quantity
Price per unit*
1 pcs.
44.4584 €
5 pcs.
41.7928 €
*incl. VAT plus shipping costs
**Subject to prior sale

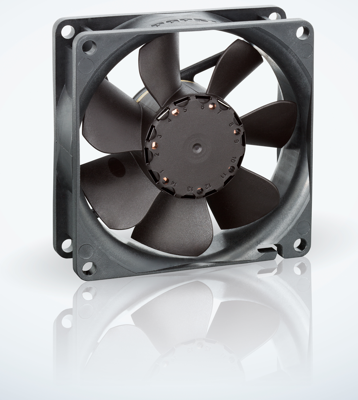

DC Axial fan, 8414 N/2GM, EBM-PAPST
The 8414 N/2GM axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Protected against reverse polarity and blocking
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 80 mm | |
| speed | 2600 1/min | |
| Height | 80 mm | |
| Type of bearing | slide bearing | |
| Power consumption | 1.4 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 26 db | |
| Depth | 25 mm | |
| Volume flow | 58 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
