8414 NM | ebm-papst
DC axial fan, 24 V, 80 x 80 x 25 mm, 58 m³/h, 27 dB, ball bearing, ebm-papst 8414 NM
Unit Price (€ / pc.)
41.2335 € *
Available: 131 pcs.
Next delivery: 50 pcs. on 2025-12-12
Leadtime: 2 Weeks **
Total Price:
41.23 € *
Price list
Quantity
Price per unit*
1 pcs.
41.2335 €
5 pcs.
38.7583 €
15 pcs.
37.2827 €
50 pcs.
35.6286 €
150 pcs.
34.1411 €
*incl. VAT plus shipping costs
**Subject to prior sale

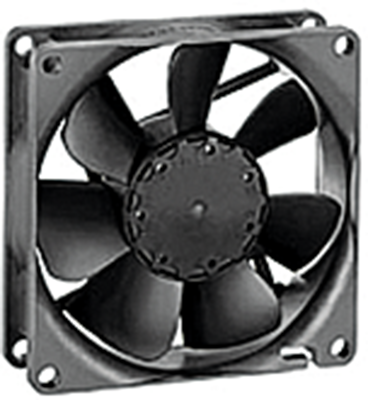

DC Axial fan, 8414 NM, EBM-PAPST
The 8414 NM axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Electronic commutation completely integrated
- Protected against reverse polarity and blocking
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 80 mm | |
| speed | 2600 1/min | |
| Height | 80 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 1.4 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 27 db | |
| Depth | 25 mm | |
| Volume flow | 58 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
