9274014829 | ebm-papst

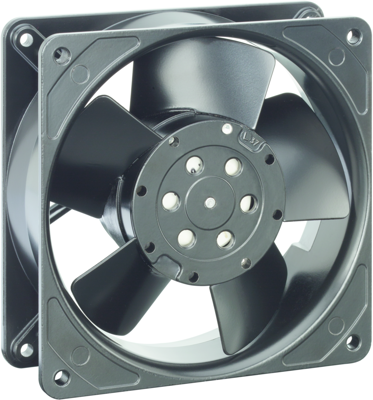

AC axial fan, 230 V, 119 x 119 x 38 mm, 100 m³/h, 26 dB, slide bearing, ebm-papst 9274014829
Unit Price (€ / pc.)
60.6543 € *
Available: 33 pcs.
Leadtime: 3 Weeks **
Total Price:
60.65 € *
Price list
Quantity
Price per unit*
1 pcs.
60.6543 €
5 pcs.
57.0129 €
15 pcs.
54.8352 €
50 pcs.
52.4195 €
150 pcs.
50.2299 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC Axial fan, 9274014829, EBM-PAPST
The 9274014829 axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Direction of rotation right, viewed on the rotor
- Protected against overload by impedance protection
- Material impeller metal
- Material housing: metal
Technical specifications
| Version | AC axial fan | |
| Width | 119 mm | |
| speed | 1700 1/min | |
| Height | 119 mm | |
| Type of bearing | slide bearing | |
| Power consumption | 13 W | |
| Rated voltage | 230 V | |
| Sound pressure level | 26 db | |
| Depth | 38 mm | |
| Volume flow | 100 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
