9906 M | ebm-papst

AC axial fan, 115 V, 119 x 119 x 25 mm, 111 m³/h, 37 dB, ball bearing, ebm-papst 9906 M

Order No.: 90B1156
EAN: 4099889480740
MPN:
9906 M
9282708006
Series: 9900

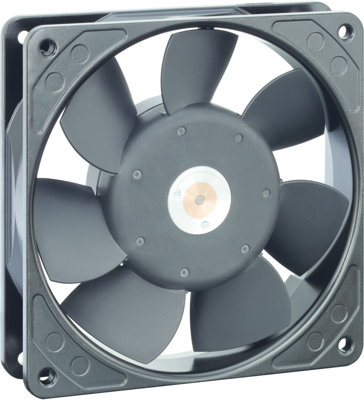

9906 M ebm-papst Axial Fans Image 1
9906 M ebm-papst Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
69.9839 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
69.98 € *
Price list
Quantity
Price per unit*
1 pcs.
69.9839 €
5 pcs.
65.7951 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC Axial fan, 9906 M, EBM-PAPST

The 9906 M axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.

Features

  • The connection cable has 2 flat plugs with 2.8 x 0.5 mm
  • Protected against overload by impedance protection
  • Direction of rotation left, viewed on the rotor
  • Material impeller mineral reinforced plastic PA
Technical specifications
Ausführung AC-Axiallüfter
Breite 119 mm
Drehzahl 2450 1/min
Höhe 119 mm
Lagerart Kugellager
Leistungsaufnahme 8 W
Nennspannung 115 V
Schalldruckpegel 37 db
Tiefe 25 mm
Volumenstrom 111 m³/h
Logistics
Ursprungsland HU
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
