9956 | ebm-papst

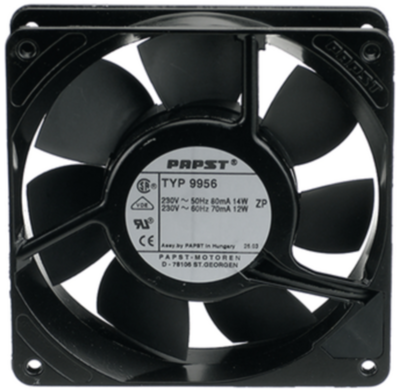

AC axial fan, 230 V, 119 x 119 x 25 mm, 117 m³/h, 37 dB, ball bearing, ebm-papst 9956
No longer available from manufacturer
Unit Price (€ / pc.)
56.8701 € *
Available: 315 pcs.
Leadtime: 3 Weeks **
Total Price:
56.87 € *
Price list
Quantity
Price per unit*
1 pcs.
56.8701 €
5 pcs.
52.8955 €
10 pcs.
48.6472 €
25 pcs.
43.7920 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC Axial fan, 9956, EBM-PAPST
The axial fan 9956 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- The connection cable has 2 flat plugs with 2.8 x 0.5 mm
- Protected against overload by impedance protection
- Direction of rotation left, viewed on the rotor
- Material impeller mineral reinforced plastic PA
Technical specifications
| Version | AC axial fan | |
| Width | 119 mm | |
| speed | 2450 1/min | |
| Height | 119 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 14 W | |
| Rated voltage | 230 V | |
| Sound pressure level | 37 db | |
| Depth | 25 mm | |
| Volume flow | 117 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
