AC6200NM | ebm-papst
AC axial fan, 265 V, 172 x 172 x 51 mm, 350 m³/h, 50 dB, ball bearing, ebm-papst AC6200NM
Unit Price (€ / pc.)
149.2260 € *
Available: 11 pcs.
Leadtime: 8 Weeks **
Total Price:
149.23 € *
Price list
Quantity
Price per unit*
1 pcs.
149.2260 €
3 pcs.
144.7516 €
10 pcs.
139.7774 €
25 pcs.
136.0408 €
*incl. VAT plus shipping costs
**Subject to prior sale

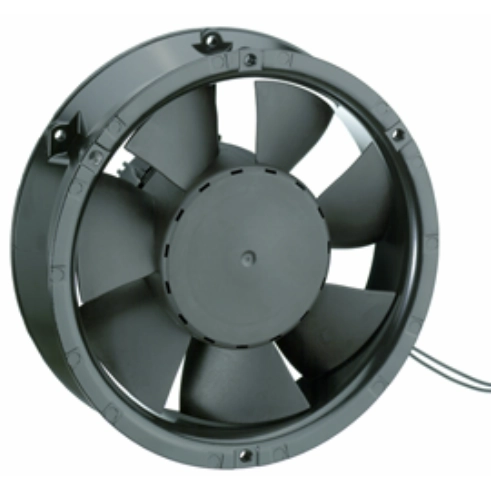

AC Axial fan, AC6200NM, EBM-PAPST
The AC6200NM axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Electronic commutation completely integrated
- Protected against blocking
- Impeller made of fibreglass-reinforced PA

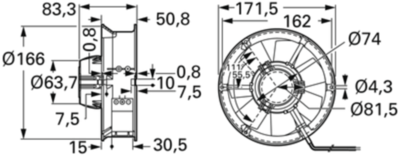

Technical specifications
| Version | AC axial fan | |
| Width | 172 mm | |
| speed | 2850 1/min | |
| Height | 172 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 14 W | |
| Rated voltage | 265 V | |
| Sound pressure level | 50 db | |
| Depth | 51 mm | |
| Volume flow | 350 m³/h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
