AF120-00143 12V P/2 6.500 | ebm-papst

DC axial fan, 12 V, 120 x 120 x 38 mm, 345 m³/h, 60 dB, ball bearing, ebm-papst AF120-00143 12V P/2 6.500

Order No.: 88B9705
EAN: 4099889480061
MPN:
AF120-00143 12V P/2 6.500
Series: AxiForce
ebm-papst
AF120-00143 12V P/2 6.500 ebm-papst Axial Fans

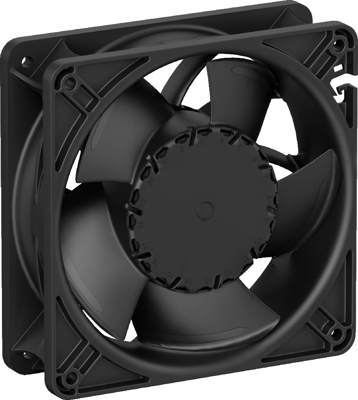

Image may differ
Unit Price (€ / pc.)
69.8173 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
69.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
69.8173 €

DC Axial fan, AF120-00143 12V P/2 6.500, EBM-PAPST

The AF120-00143 12V P/2 6.500 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Max. torque when mounted across both mounting wire outlet corner is 80 Ncm
  • Material housing: plastic
Technical specifications
Version DC axial fan
Width 120 mm
speed 6500 1/min
Height 120 mm
Type of bearing ball bearing
Power consumption 30 W
Rated voltage 12 V
Sound pressure level 60 db
Depth 38 mm
Volume flow 345 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
