AF172-000059 48V P/2 8.300 | ebm-papst

DC axial fan, 48 V, 150 x 172 x 51 mm, 650 m³/h, 70 dB, ball bearing, ebm-papst AF172-000059 48V P/2 8.300

Order No.: 88B9695
EAN: 4099889479980
MPN:
AF172-000059 48V P/2 8.300
Series: AxiForce
ebm-papst
AF172-000059 48V P/2 8.300 ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
201.11 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
201.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
201.11 €

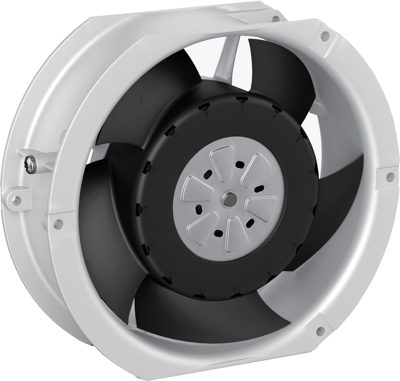

DC Axial fan, AF172-000059 48V P/2 8.300, EBM-PAPST

The AF172-000059 48V P/2 8.300 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.

Features

  • Direction of rotation is clockwise while viewed towards the rotor
  • Airflow direction air outlet over struts
  • Max. torque when mounted across both mounting wire outlet corner is 190 Ncm
  • Material housing: metal
Technical specifications
Version DC axial fan
Width 150 mm
speed 8300 1/min
Height 172 mm
Type of bearing ball bearing
Power consumption 8.1 W
Rated voltage 48 V
Sound pressure level 70 db
Depth 51 mm
Volume flow 650 m³/h
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
