AF80-00138 48V P/2 13.200 | ebm-papst

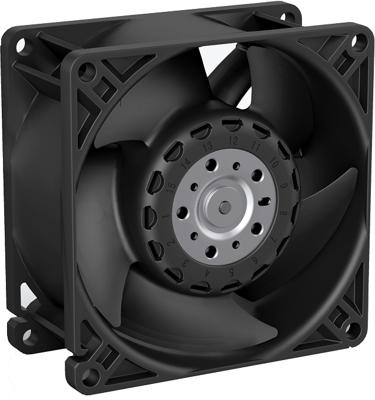

DC axial fan, 48 V, 80 x 80 x 38 mm, 178 m³/h, 71 dB, ball bearing, ebm-papst AF80-00138 48V P/2 13.200
Unit Price (€ / pc.)
63.0819 € *
Available: 33 pcs.
Leadtime: On Request **
Total Price:
63.08 € *
Price list
Quantity
Price per unit*
1 pcs.
63.0819 €
10 pcs.
59.2977 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, AF80-00138 48V P/2 13.200, EBM-PAPST
The AF80-00138 48V P/2 13.200 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 50 Ncm
- Insulation diameter 1,70 mm
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Nennspannung | 48 V | |
| Breite | 80 mm | |
| Höhe | 80 mm | |
| Tiefe | 38 mm | |
| Volumenstrom | 178 m³/h | |
| Schalldruckpegel | 71 db | |
| Drehzahl | 13200 1/min | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 25 W |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
