RG 160-28/14 N | ebm-papst
DC radial fan, 24 V, 220 x 220 x 56 mm, 209 m³/h, 66 dB, ball bearing, ebm-papst RG 160-28/14 N
Order No.: 90B223
EAN: 4099889484694
MPN:
RG 160-28/14 N
9595414100
Unit Price (€ / pc.)
178.6071 € *
Available: 4 pcs.
Leadtime: 8 Weeks **
Total Price:
178.61 € *
Price list
Quantity
Price per unit*
1 pcs.
178.6071 €
3 pcs.
173.2402 €
10 pcs.
167.2902 €
*incl. VAT plus shipping costs
**Subject to prior sale

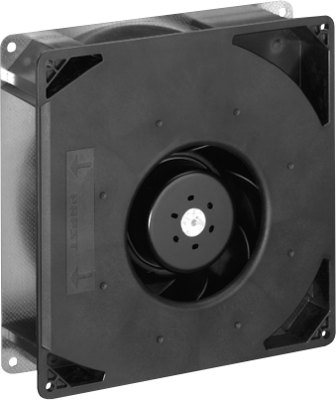

Radial fan, RG 160-28/14 N, ebm-papst
The RG 160-28/14 N is available with forward and backward curved blades. The low-noise centrifugal fan with forward-curved blades are also available with a volute casing. The centrifugal fan with backward-curved blades is designed as freewheelers and do not require a volute casing. In the case of centrifugal fan with external rotor motors, the motor is placed in the impeller, which, in addition to optimum cooling of the motor, also results in a particularly compact design.
This product can also be used to implement any control, monitoring and maintenance functions - whether for the smart home or industry.
Features
- Speed signal
- External temperature sensor
- Internal temperature sensor
- Analog control input
- Moisture protection
Technical specifications
| Width | 220 mm | |
| speed | 2850 1/min | |
| Height | 220 mm | |
| Type of bearing | ball bearing | |
| Rated voltage | 24 V | |
| Sound pressure level | 66 db | |
| Depth | 56 mm | |
| Volume flow | 209 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145935 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
