QG 030 - 303/14 | ebm-papst
DC-tangential blowers, 24 V, 140 m³/h, QG 030
Unit Price (€ / pc.)
160.7214 € *
Available: 8 pcs.
Leadtime: 8 Weeks **
Total Price:
160.72 € *
Price list
Quantity
Price per unit*
1 pcs.
160.7214 €
3 pcs.
155.9019 €
10 pcs.
150.5350 €
25 pcs.
146.5247 €
*incl. VAT plus shipping costs
**Subject to prior sale

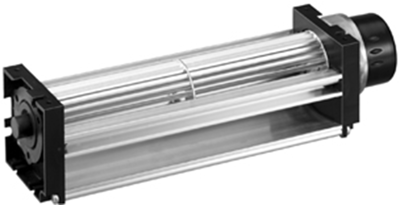

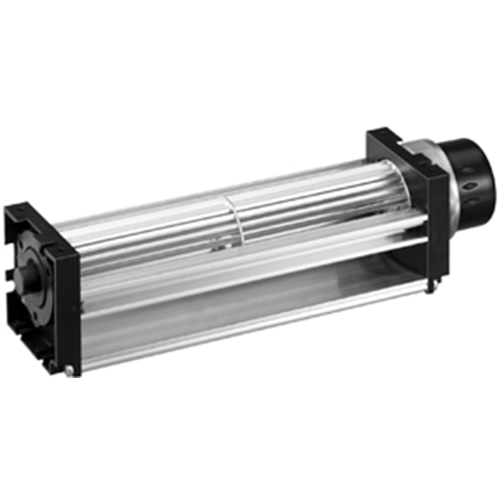

DC tangential blower, QG 030 - 303/14, ebm-papst
The QG 030 - 303/14 is a tangential blower with high air flow rate, electronically commutated external rotor motor with ball bearing system and integrated electronic commutation system, polarity reversal/blockage and overload protection. Impeller bracket with friction bearing, impeller and fan housing made of aluminum, housing side parts made of plastic.
Technical specifications
| Breite | 365.4 mm | |
| Drehzahl | 3800 1/min | |
| Höhe | 47.5 mm | |
| Lagerart | Kugellager | |
| Nennspannung | 24 V | |
| Schalldruckpegel | 51 db | |
| Tiefe | 50 mm | |
| Volumenstrom | 140 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145935 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
