29470.1 | EFB-Elektronik

D-Sub connector housing, size: 1 (DE), straight 180°, cable Ø 4 to 13 mm, zinc die casting, silver, 29470.1

Order No.: 25P7224
EAN: 4049759066338
MPN:
29470.1
EFB-Elektronik
29470.1 EFB-Elektronik D-Sub Housings
Image may differ
Print
Key Specification:
Shell size 1 (DE)
Cable Outlet straight 180°
Cable diameter 4 to 13 mm
Shell Material zinc die casting
Type of locking knurled screw 4-40 UNC
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.4843 € *
Available: 0 pcs.
Available in 5 Days: 312 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
9.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.4843 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

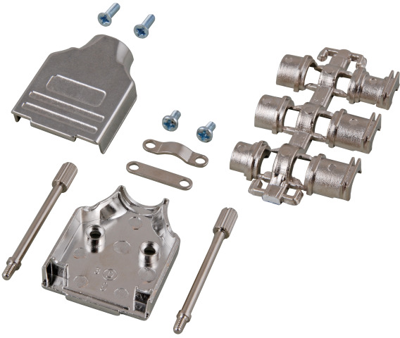

D-Sub connector housing, EFB, 29470.1

Full metal cover E-MHDM 180° cable outlet, 9-positions.

Features

  • Full metal housing 180° cable outlet
  • Thumb screws UNC 4-40
  • For cable diameter up to 13.0 mm
  • Screw locking mechanism
Technical specifications
Colour silver
Shell size 1 (DE)
Shell Material zinc die casting
Cable Outlet straight 180°
Cable diameter 4 to 13 mm
Type of locking knurled screw 4-40 UNC
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85447000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
