98701.100 | EFB-Elektronik

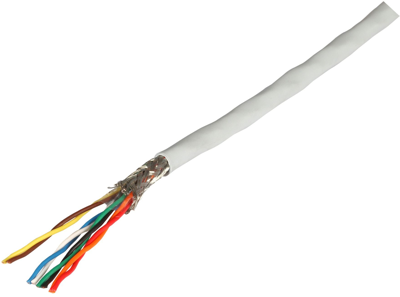

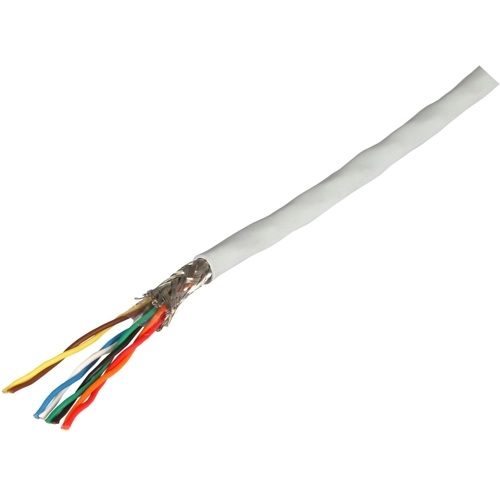

PVC network cable, Cat 5e, 8-wire, 0.16 mm², AWG 26-7, gray, 98701.100
Order No.: 26P1339
EAN: 4049759074043
MPN:
98701.100
Unit Price (€ / pck.)
180.9038 € *
Available: 0 pck.
Leadtime: On Request **
Network cable, 98701.100, EFB Elektronik
The 98701.100 is a Cat. 5E Patch cable with the structure tuned to a fast and reliable packing! Electrically and mechanically high-quality 300 MHz patch cords - exceeds the highest expectations. It guarantees limits according to Cat.5: ISO / IEC 11801 and EN 50173-1, EN 50288-2-2. As data jumper cable in patch panels and as cord for the transmission of digital and analogue voice, image and data signals. It is especially suitable for all applications of class D.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 8 | |
| Ausführung | Netzwerkkabel | |
| Außendurchmesser | 5.1 mm | |
| AWG-Leiterquerschnitt | AWG 26-7 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Kategorie | Cat 5e | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,16 mm² | |
| Material | PVC | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -20 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | 0 °C bis 50 °C |
Download
Logistics
| Zolltarifnummer | 85444210 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
