99705.100 | EFB-Elektronik

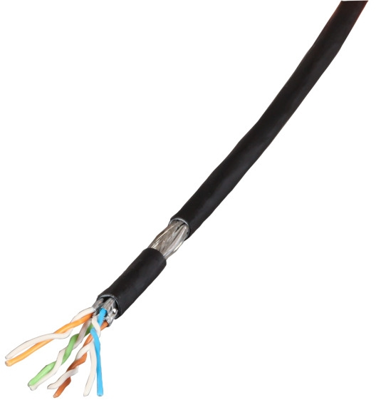

FRNC-B network cable, Cat 7, 8-wire, AWG 27-7, black, 99705.100
Order No.: 26P2735
EAN: 8717511119245
MPN:
99705.100
Unit Price (€ / pck.)
162.3517 € *
Available: 0 pck.
Leadtime: On Request **
Network cable, 99705.100, EFB Elektronik
Cat.7 Patch cable - overtakes the requirements of ISO/IEC 11801, IEC 61156-6, EN 50173-1 and EN 50288-4-2. Useable for all ICT - applications up to class F according to EN 50173-1 and ISO/IEC 11801, furthermore also for multimedia - applications in CATV - frequency range up to 862 MHz according to IEC 15018. Suitable for performance of Power over Ethernet (PoE) / PoE+.
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 8 | |
| Ausführung | Netzwerkkabel | |
| Außendurchmesser | 5.9 mm | |
| AWG-Leiterquerschnitt | AWG 27-7 | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Kategorie | Cat 7 | |
| Leitermaterial | Kupfer, verzinnt | |
| Material | FRNC-B | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -20 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | 0 °C bis 50 °C |
Download
Logistics
| Zolltarifnummer | 85444920 |

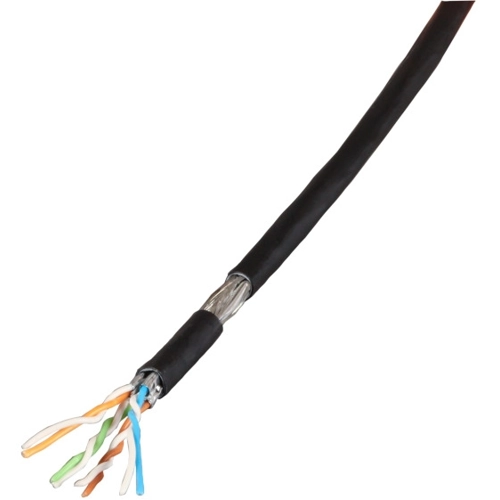

| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
