MK7104.100W | EFB-Elektronik

FRNC-B network cable, Cat 7, 8-wire, AWG 26-7, white, MK7104.100W

Order No.: 26P1337
EAN: 4049759151706
MPN:
MK7104.100W
EFB-Elektronik
MK7104.100W EFB-Elektronik Data Cables

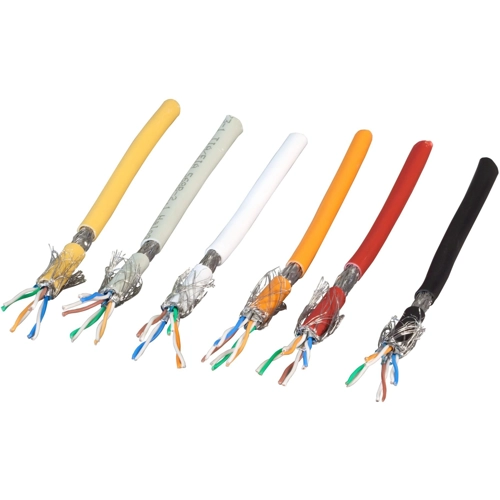

Image may differ
Unit Price (€ / pck.)
93.4864 € *
Available: 0 pck.
Leadtime: On Request **
Total Price:
93.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pck.
93.4864 €

Network cable, MK7104.100W, EFB Elektronik

The network cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

Technical specifications
Core insulation material PE
Number of cores 8
Version network cable/raw cable
Outer diameter 6.5 mm
AWG cross-section AWG 26-7
Colour white
Halogen free Yes
Category Cat 7
Cable material copper, tin-plated
Material FRNC-B
Shielding shielded
Drag chain suitable No
Temperature range (active) -20 °C to 60 °C
Temperature range (unmoved) 0 °C to 60 °C
Logistics
Country of origin CN
Customs tariff number 85444920
Original Packaging Ring with 100 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
