MK7104.100Y | EFB-Elektronik
FRNC-B network cable, Cat 7, 8-wire, AWG 26-7, yellow, MK7104.100Y
Order No.: 26P1338
EAN: 4049759151713
MPN:
MK7104.100Y
Unit Price (€ / pck.)
84.1330 € *
Standard delivery time from the manufacturer is: 8 Weeks

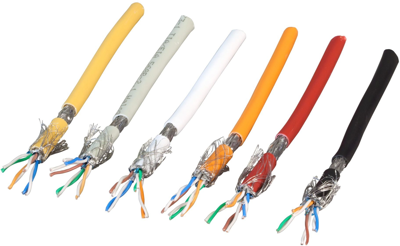

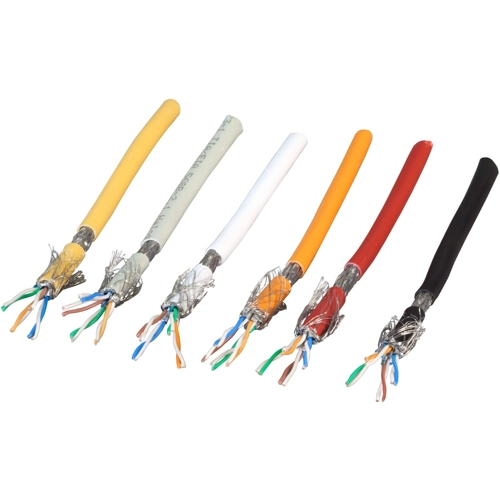

Network cable, MK7104.100Y, EFB Elektronik
The network cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | network cable/raw cable | |
| Number of cores | 8 | |
| AWG cross-section | AWG 26-7 | |
| Outer diameter | 6.5 mm | |
| Category | Cat 7 | |
| Colour | yellow | |
| Material | FRNC-B | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | 0 °C to 60 °C | |
| Temperature range (active) | -20 °C to 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
