O0318.10OM5 | EFB-Elektronik

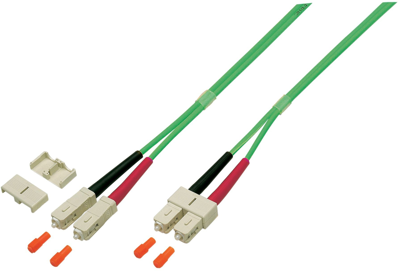

Duplex-jumper, SC duplex to SC duplex, 10 m, OM5, multimode 50/125 µm, O0318.10OM5
Order No.: 26P2014
EAN: 4049759178512
MPN:
O0318.10OM5
Unit Price (€ / pc.)
31.2256 € *
Available: 0 pcs.
Available in 5 Days: 11 pcs.
Leadtime: On Request **
Duplex jumper, O0318.10OM5, EFB Elektronik
Fiber jumper (patchcord) is defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class.
Features
- Tension relief reinforced with aramid yarn
- Halogen-free and flame-retardant sheath
- 100% tested and with individual measurement report
Technical specifications
| Connection (1) | SC duplex | |
| Connection (2) | SC duplex | |
| Version | duplex-jumper | |
| Colour | green | |
| Chamfer type | multimode 50/125 µm | |
| Cable type | I-V(ZN)H | |
| Cable length | 10 m | |
| Category | OM5 | |
| Material | LSZH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
