O0318.25OM5 | EFB-Elektronik

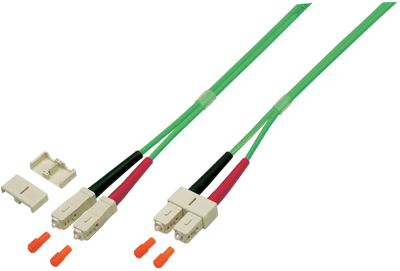

Duplex-jumper, SC duplex to SC duplex, 25 m, OM5, multimode 50/125 µm, O0318.25OM5
Order No.: 26P2018
EAN: 4049759237530
MPN:
O0318.25OM5
Unit Price (€ / pc.)
67.4016 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Duplex jumper, O0318.25OM5, EFB Elektronik
Fiber jumper (patchcord) is defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class.
Features
- Tension relief reinforced with aramid yarn
- Halogen-free and flame-retardant sheath
- 100% tested and with individual measurement report
Technical specifications
| Anschluss (1) | SC-Duplex | |
| Anschluss (2) | SC-Duplex | |
| Ausführung | Duplex-Jumper | |
| Farbe | grün | |
| Faserart | Multimode 50/125 µm | |
| Kabel | I-V(ZN)H | |
| Kabellänge | 25 m | |
| Kategorie | OM5 | |
| Material | LSZH |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85447000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
