O2513.5-1.2 | EFB-Elektronik

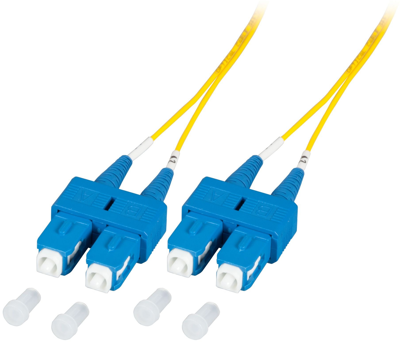

Duplex-jumper, SC duplex to SC duplex, 5 m, OS2, singlemode 9/125 µm, O2513.5-1.2
Order No.: 26P2056
EAN: 4049759170011
MPN:
O2513.5-1.2
Unit Price (€ / pc.)
10.4125 € *
Available: 0 pcs.
Available in 5 Days: 11 pcs.
Leadtime: On Request **
Duplex jumper, O2513.5-1.2, EFB Elektronik
The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.
Features
- Space-saving installation due to the small outer diameter
- Halogen free and flame retardant
- 100% tested and with individuell measuring protocol
Technical specifications
| Connection (1) | SC duplex | |
| Connection (2) | SC duplex | |
| Version | duplex-jumper | |
| Colour | yellow | |
| Chamfer type | singlemode 9/125 µm | |
| Cable type | I-V(ZN)H | |
| Cable length | 5 m | |
| Category | OS2 | |
| Material | LSZH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
