K8108SW.1 | EFB-Elektronik

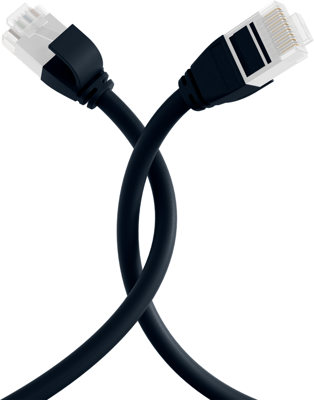

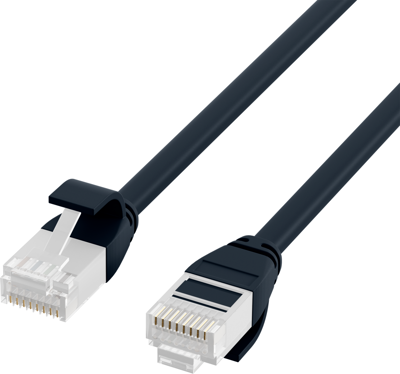

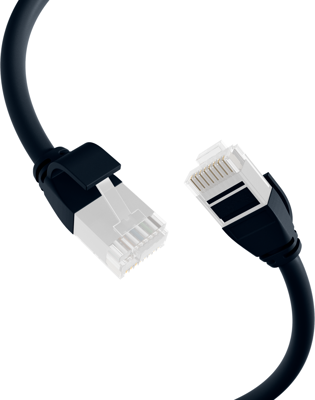

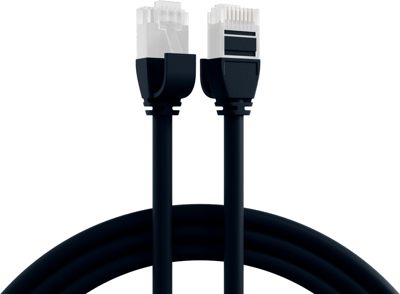

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, U/UTP, TPE/LSZH, 1 m, black, K8108SW.1
Order No.: 25P9812
EAN: 4049759187934
MPN:
K8108SW.1
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: On Request **
Patch cable, K8108SW.1, EFB Elektronik
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and simplifies the plugging process in cramped conditions. The short connector in combination with the thin outer jacket enables a very high packing density.
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | patch cable | |
| AWG cross-section | AWG 30-7 | |
| Colour | black | |
| Halogen free | Yes | |
| Cable type | U/UTP | |
| Cable length | 1 m | |
| Category | Cat 6A | |
| Material | TPE/LSZH | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
