22340B.30R | EFB-Elektronik

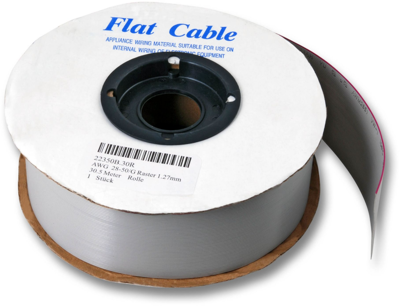

Flat ribbon cable, 40 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, gray, 22340B.30R

Order No.: 26P0884
EAN: 4049759039813
MPN:
22340B.30R
EFB-Elektronik
22340B.30R EFB-Elektronik Ribbon Cables
Image may differ
Print
Key Specification:
Version flat ribbon cable
Number of cores 40
Grid 1.27 mm
Cable cross-section 0.09 mm²
AWG cross-section AWG 28

Ordering Information:

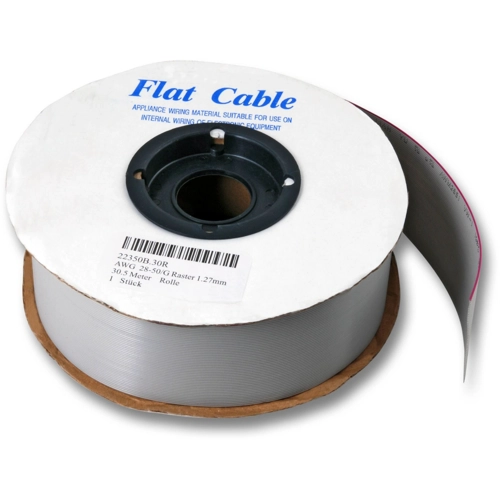

Supplied on a roll of 30.5 meters (= 100 feet)
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pck.)
140.8841 € *
Available: 1 pck.
Leadtime: On Request **
Total Price:
140.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pck.
140.8841 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Flat cable, 22340B.30R, EFB Elektronik

Ribbon cable, pitch 1.27 mm , 30.5 m, AWG 28/7.
Technical specifications
Core insulation material PVC
Number of cores 40
Version flat ribbon cable
Outer diameter 0.93 mm
AWG cross-section AWG 28
Colour gray
Halogen free No
Cable length 30.5 m
Cable cross-section 0.09 mm²
Rated voltage 300 V
Grid 1.27 mm
Shielding unshielded
Temperature range (active) -20 °C to 105 °C
Temperature range (unmoved) -30 °C to 105 °C
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85444993
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
