F011-126/032 | Eichhoff
RFI filter, 50 to 60 Hz, 16 A, 110/250 VAC, 1 mH, faston plug 6.3 mm, F011-126/032
Unit Price (€ / pc.)
18.683 € *
Available: 0 pcs.
Leadtime: On Request **

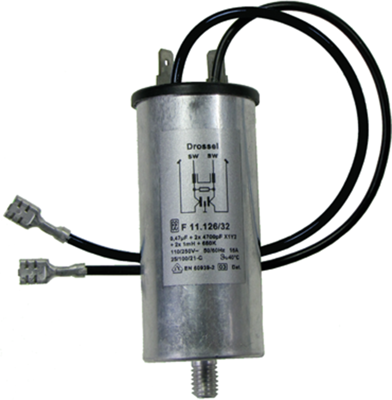

RF suppression filters, type Eichhoff F011-126.
Metal can with M 8 threaded stud; Rated values: 0.47 µF + 2 x 4700 pF X1Y2, 2 x 1.0 mH + 680 kohm. Rated voltage: 110/250 VAC. Rated current: 16 A. Operating temperatures: –25 to +100 °C. Dimensions: 75 x 35 mm. Thread length: 10 mm.
With two tab terminals and two cables with receptacles.
Cable length: approx. 205 mm. Test logo: VDE.
Type: F011-126/032, RF suppression filter
Technical specifications
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| Version | RFI filter | |
| Rated Voltage | 110/250 VAC | |
| Inductance per line | 1 mH | |
| Capacity X|Y | X2 470 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 16 A |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
