SMD-P12A03 | EKULIT
SMD signal transmitter, 75 dB, 3 VDC, 3 mA, gray, SMD-P12A03
Order No.: 36M332
EAN: 4099891541590
MPN:
SMD-P12A03
Unit Price (€ / pc.)
2.1896 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1896 €
25 pcs.
1.8683 €
100 pcs.
1.7136 €
250 pcs.
1.6303 €
1000 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale

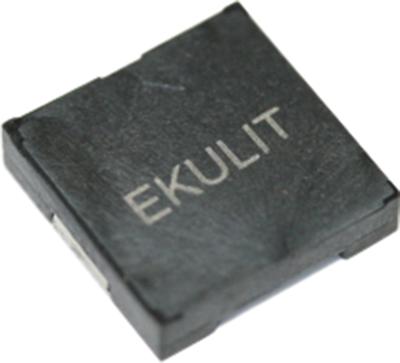

SMD buzzers, type EKULIT SMD-P12A03.
Sound pressure level (at 10 cm): min. 75 dB. Operating voltage: 1.0 to 25 V. Rated voltage: 3.0 V. Operating current: max. 3.0 mA. Resonant frequency: 4000 Hz ±500 Hz. Operating temperatures: –20 to +70 °C. Weight: 0.4 g.
Type: SMD-P12A03, buzzer
Technical specifications
| Version | SMD signal transmitter | |
| Colour | gray | |
| Rated current | 3 mA | |
| Resonance frequency | 4000 Hz | |
| Sound pressure level | 75 db | |
| Voltage | 3 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85319000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
