DL 07 | ELC

Decade box, DL 07, ELC

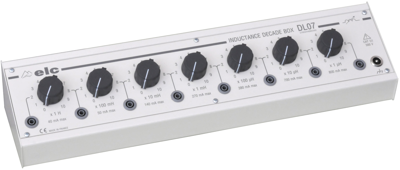

The DL07 is an Inductance box with 7 highly accurate decades, adjustable via a rotary control. Each decade consists of inductors wound around a ferrite pot core, which gives a Q factor between 55 and 100. Like all inductors of this type, the applied voltage mostly depends on the operating frequency. The voltage must be limited to avoid core saturation and overheating.

Features

• Easy to read metal case with intermediate tap at each decade
• Good long-term stability
• Q factor between 55 and 100, depending on decade

Technical Data

• Decade Box Type: Inductance
• Decade Test Range: 1µH to 11.11111 H
• Accuracy: 5 %
