6648318-1 | ELCON

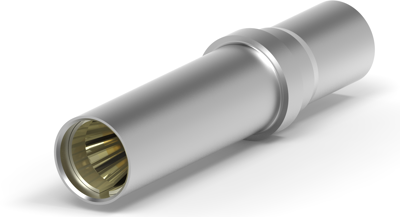

Receptacle, 4.0 mm², AWG 12, crimp connection, 6648318-1
Order No.: 36P8759
EAN: 4099889648133
MPN:
6648318-1
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Available in 5 Days: 1,262 pcs.
Leadtime: 4 Weeks **
Total Price:
205.28 € *
Price list
Quantity
Price per unit*
50 pcs.
4.1055 €
150 pcs.
4.0222 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 6648318-1, Elcon
Power Contact Type: Contact, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Mating Area Plating Material: Gold Flash, Contact Current Rating (Max): 35 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.38 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 12 AWG, Wire Size: 4 mm², Wire Size: 6530 CMA, Operating Temperature Range: -40 – 105 °C.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 12 | |
| Isolationsdurchmesser | 0,18-0,15 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Kupferlegierung | |
| Kontaktoberfläche Steckbereich | vergoldet | |
| Leiterquerschnitt | 4,0 mm² |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
