1648578-1 | ELCON

Socket housing, 39 pole, pitch 18.42 mm, straight, black, 1648578-1

Order No.: 71P3028
EAN: 4099891721770
MPN:
1648578-1

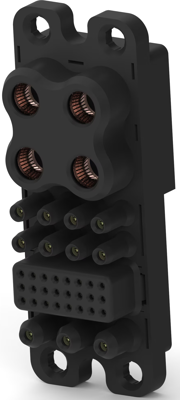

1648578-1 ELCON PCB Connection Systems Image 1

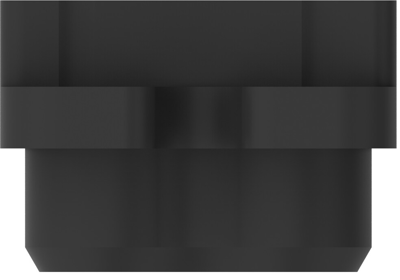

1648578-1 ELCON PCB Connection Systems Image 2

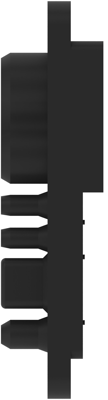

1648578-1 ELCON PCB Connection Systems Image 3

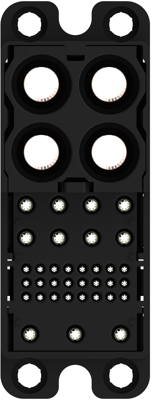

1648578-1 ELCON PCB Connection Systems Image 4
1648578-1 ELCON PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
70.3885 € *
Available: 0 pcs.
Available in 5 Days: 1,690 pcs.
Leadtime: 21 Weeks **
Total Price:
211.17 € *
Price list
Quantity
Price per unit*
3 pcs.
70.3885 €
8 pcs.
69.0795 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket housing, 1648578-1, ELCON

Rectangular power connector, Housing, Receptacle, Wire-to-Board, 39 Position, 18.42 mm Centerline, Wire & Cable.

Applications

  • Low noise power supplies
  • Switch-mode power supplies
  • Power factor-correcting (PFC) power supplies
  • Redundant (N + 1) power system
  • RoHS compliant
Technical specifications
Connection Crimpanschluss
Version Buchsengehäuse
Colour schwarz
Contact type Stift
Rated voltage 750 V
Rated current 200 A
Orientation gerade
Pin number 39-polig
Grid 18.42 mm
Logistics
Country of origin MX
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
