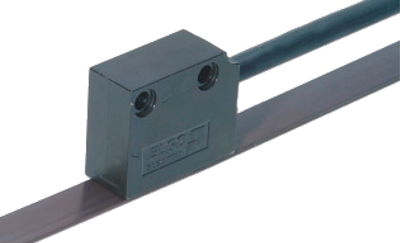

EMIX2-000-05.0-2-00, distance measuring system EMIX2

with index pulse, integrated electronic evaluation system in the sensor, square-wave signal output proportional to velocity. Resolution EMIX2 with four edge sensing: 0.01 mm. Distance sensor/strip: max. 0.8 mm. Output current: max. 20 mA per channel, index pulse 2.0 mm (period depends on traversing velocity). Supply/output voltage: 10 to 30 VDC, tolerance/supply voltage: stabilized, residual ripple max. 5.0 %. Current consumption: max. 150 mA. Output frequency (per channel) EMIX2: 100 kHz. Traversing velocity: max. 4.0 m/s. Signal cable length: 5.0 m (max. 30 m). Case: zinc die-cast. Degree of protection: IP 67. Operating temperatures: 0 to +50 °C
