MR50-A21B-B113 | ELMA
Step rotary switches, 1 pole, 16 stage, 22.5°, interrupting, 28 V, MR50-A21B-B113
Unit Price (€ / pc.)
30.5949 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
30.59 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5949 €
5 pcs.
28.7623 €
15 pcs.
27.6556 €
50 pcs.
26.4299 €
150 pcs.
25.3351 €
*incl. VAT plus shipping costs
**Subject to prior sale

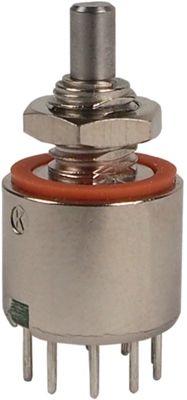

Rotary switch, MR50-A21B-B113, ELMA

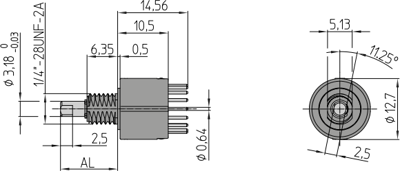

Rotary switch, 16 positions with end position, switching mode: Non-shorting, 1-pole, Shaft style: 3.18 mm D-shaft, Torque: 3 Ncm, Protection: IP 68, Shaft length: 11.85 mm stainless steel, Mounting: PCB.
Technical specifications
| Connection | PCB connection | |
| Number of steps | 16 | |
| Version | Rotary step switch | |
| Rated voltage | 28 V | |
| Pin number | 1 pole | |
| Switching Mode | interrupting | |
| Switching angle | 22.5 ° |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365015 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
