122310 | Elobau

Magnet sensor, PA, built-in mounting M12, 1 Form A (N/O), 20 W, 250 V (DC), 1 A, 122310

Order No.: 29G430
EAN: 4099889448160
MPN:
122310
Series: 122

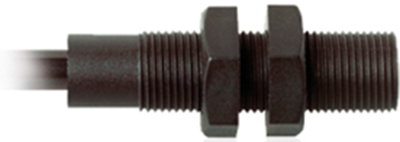

122310 Elobau Proximity Switches, Reed switches Image 1
122310 Elobau Proximity Switches, Reed switches Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Magnet sensor, PA, built-in mounting M12, 1 Form A (N/O), 20 W, 48 V (DC), 1 A, 122210
Magnet sensor, PA, built-in mounting M12, 1 Form A (N/O), 20 W, 48 V (DC), 1 A, 122210
Order No.: 29G431
Manufacturer: Elobau
per pc. 40.4362 € *
*incl. VAT plus shipping costs

Magnetic proximity switches, type Elobau 122.

Pipe switch with reed contacts; Switching voltage/current maximum: 250 V/max. 1.0 A. Breaking capacity: max. 20 W/30 VA. Degree of protection: IP 67. Operating temperatures: –25 to +75 °C. Material: PA. Connecting cable: 1.0 m.

Technical attributes (type, contact type): 122310, NO contact

Technical specifications
Connection Kabel, PVC 0,5 mm², 1 m
Version PA
Detecting distance 30 mm
Length 46 mm
Assembly Einbaumontage M12
Product type Magnetsensor
Latching switching function 1 Schließer
Breaking capacity 20 W
Switching Voltage (DC) 250 V
switching current 1 A
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Replacement
