S12-100-24V | Eltako
Impulse switch, 1 Form A (N/O), 24 VAC, 10 A, 230 V, 2300 W, S12-100-24V
Order No.: 06N7084
EAN: 4010312100462
MPN:
S12-100-24V
Unit Price (€ / pc.)
23.4549 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
23.45 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4549 €
10 pcs.
21.1344 €
*incl. VAT plus shipping costs
**Subject to prior sale

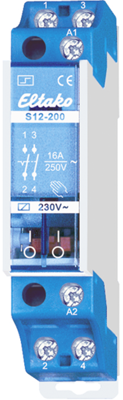

Pulse relays, type Eltako S12.
For in-line installation on DIN rails, with hand-operated actuator and switching state indication; Contacts: 1 NO, 2 NO, or 1 NO + 1 NC. Rated breaking capacity: 16 A/250 VAC, 10 A/400 VAC. Required control power: 5.0 W. Duty cycle: 100 %. Test voltage contact/contact: 2000 V. Incandescent/ halogen lamp load on 230 V: 2300 W. Fluorescent lamp load, DUO circuit: 3500 VA. Contact pitch: 3.0 mm. Pitch of control terminals/contacts: min. 6.0 mm. Ambient temperatures: –5.0 to +50 °C. Standards: EN 60669. Dimensions: W 18, D 55 mm.
With 1 x NO, type S12-100.
Technical attributes (type, control voltage): S12-100-24V, 24 VAC
Technical specifications
| Dimmable | No | |
| On Period | 100 % ED | |
| Size | 55 x 18 mm | |
| Lamp wattage | 2300 W | |
| Assembly | DIN rail | |
| Rated voltage (AC) | 230 V | |
| Rated current | 10 A | |
| Latching switching function | 1 Form A (N/O) | |
| Control Voltage | 24 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
