S12-110-230V | Eltako
Impulse switch, 1 Form A (N/O) + 1 Form B (N/C), 230 VAC, 16 A, 250 V, 2300 W, S12-110-230V
Order No.: 06N7094
EAN: 4010312100516
MPN:
S12-110-230V
Unit Price (€ / pc.)
27.5485 € *
Available: 0 pcs.
Leadtime: 1 Week **

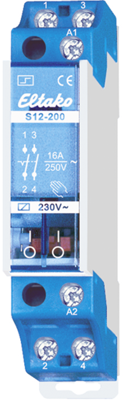

Pulse relays, type Eltako S12.
For in-line installation on DIN rails, with hand-operated actuator and switching state indication; Contacts: 1 NO, 2 NO, or 1 NO + 1 NC. Rated breaking capacity: 16 A/250 VAC, 10 A/400 VAC. Required control power: 5.0 W. Duty cycle: 100 %. Test voltage contact/contact: 2000 V. Incandescent/ halogen lamp load on 230 V: 2300 W. Fluorescent lamp load, DUO circuit: 3500 VA. Contact pitch: 3.0 mm. Pitch of control terminals/contacts: min. 6.0 mm. Ambient temperatures: –5.0 to +50 °C. Standards: EN 60669. Dimensions: W 18, D 55 mm.
With 1 NO + 1 NC, type S12-110.
Technical attributes (type, control voltage): S12-110-230V, 230 VAC
Technical specifications
| Dimmable | No | |
| On Period | 100 % ED | |
| Size | 55 x 18 mm | |
| Lamp wattage | 2300 W | |
| Assembly | recessed and surface mounting | |
| Rated voltage (AC) | 250 V | |
| Rated current | 16 A | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
