ER12-002-UC | Eltako
Control relay with universal control voltage, 8-230 V AC/DC, 2 Form C (NO/NC), 16 A, 250 V (AC), ER12-002-UC
Order No.: 27G515
EAN: 4010312205372
MPN:
ER12-002-UC
Unit Price (€ / pc.)
61.4873 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
61.49 € *
Price list
Quantity
Price per unit*
1 pcs.
61.4873 €
5 pcs.
57.7983 €
15 pcs.
55.5849 €
50 pcs.
53.1216 €
150 pcs.
50.9082 €
*incl. VAT plus shipping costs
**Subject to prior sale

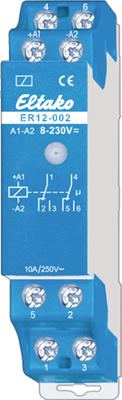

Control relays with universal control voltage, type Eltako ER12.
For in-line installation on DIN rails, with bistable relay as front contact, low switching noise, no stand-by loss, LED control display; Contacts: 1 or 2 changeover contacts, electrically isolated. Universal control voltage: 8.0 to 230 V AC/DC Rated breaking capacity: 16 A/250 VAC. Test voltage control connections/contact: 4000 V. Filament lamp and halogen lamp load 230 V: 2000 W. Fluorescent lamp load: 1000 VA. Control current (±20%): 4.0 mA. Duty cycle: 100%. Ambient temperature: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1 and EN 60669. Dimensions: W 18, D 58 mm.
With 2 x CO, type ER12-002.
Type: ER12-002-8..230V UC, control relay
Technical specifications
| Anschluss | Schraubanschluss | |
| Kontaktart | 2 Wechsler | |
| Schaltspannung (AC) | 250 V | |
| Schaltstrom | 16 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
