AVZ12DX-UC | Eltako
Time relay, 0.1 s to 40 h, delayed switch-on, 1 Form C (NO/NC), 12-230 V, 10 A/250 VAC, AVZ12DX-UC
Order No.: 27G544
EAN: 4010312603109
MPN:
AVZ12DX-UC
Unit Price (€ / pc.)
63.5817 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
63.58 € *
Price list
Quantity
Price per unit*
1 pcs.
63.5817 €
5 pcs.
59.7737 €
15 pcs.
57.4889 €
50 pcs.
54.9423 €
150 pcs.
52.6456 €
*incl. VAT plus shipping costs
**Subject to prior sale
Timer relays with universal control voltage, type Eltako RVZ/AVZ/TGI.
Analog adjustment, for series installation on DIN rail; Contact: 1 x CO, electrically isolated. Rated breaking capacity: 10 A/250 VAC. Control voltage: 8.0 to 230 V AC/DC. Standby losses: 0.4 W. Timer ranges: 0.1 s to 40 h, adjustable. Duty cycle: 100 %. Filament and halogen lamp load 230 V: 2000 W (for lamps with max. 150 W). Fluorescent lamp load, with ballast in DUO circuit, or without ballast: 1000 VA. Ambient temperatures: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1, EN 60669 and VDE 0435. Dimensions: W 18, D 58 mm.

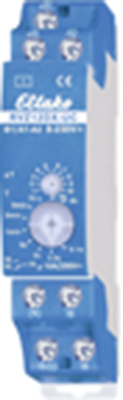

Type: AVZ12DX-UC, timer relay with pick-up delay
Technical specifications
| Connection | screw connection | |
| Function | delayed switch-on | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 10 A/250 VAC | |
| Voltage | 12-230 V | |
| Time display | 0.1 s to 40 h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
