MFZ12DDX-UC | Eltako
Multifunction relay, 0.1 s to 99 h, 18 functions, 1 Form C (NO/NC), 10-230 VDC, 10 A/250 VAC, MFZ12DDX-UC

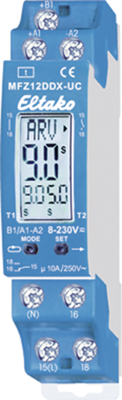

Digital multifunctional timer relays with universal control voltage, type Eltako MFZ12DDX-UC.
Digital adjustment feature, for in-line installation on DIN rails, 18 functions such as release delay, response delay, clock generator (pulse or pause start), On pulse trigger, Off pulse trigger, continuous On state, continuous Off state; Contacts: 1 x CO, electrically isolated. Universal control voltage: 8.0 to 230 V AC/DC. Time range: 0.1 to 99 h, adjustable (with 600 time settings). Rated breaking capacity: 10 A/250 VAC. Stand-by loss: 0.4 W. Duty cycle: 100 %. Incandescent/halogen lamp load 230 V: 2000 W. Fluorescent lamp load, DUO circuit: 1000 VA. Ambient temperatures: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1, EN 60669 and VDE 0435. Dimensions: W 18, D 58 mm.
Type: MFZ12DDX-UC, multifunctional timer relay
| Connection | screw connection | |
| Function | 18 functions | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 10 A/250 VAC | |
| Voltage | 10-230 VDC | |
| Time display | 0.1 s to 99 h |
| Country of origin | DE |
| Customs tariff number | 85364900 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
