TLZ12D-PLUS | Eltako

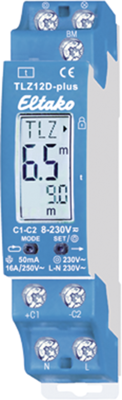

Staircase timer switch, 1 to 99 min, 4 functions, 1 Form A (N/O), 8-230 V, 16 A/250 VAC, TLZ12D-PLUS
Digital multifunctional staircase lighting timers with universal control voltage, type Eltako TLZ12D-plus.
Digital adjustment, for series installation on DIN rail, noiseless electronic system, selectable shutdown prewarning and permanent light sensor, automatic detection of the circuit type, energy-saving lamp optimization; Contact: 1 NO, not electrically isolated. Rated breaking capacity: 16 A/250 VAC. Control/supply/switching voltage: 230 V, with additional electrically isolated 8.0 to 230 V AC/DC universal control input. Standby losses: 0.5 W. Time setting: from 1.0 to 99 minutes. Duty cycle: 100 %, filament and halogen lamp load 230 V (lamps with max. 150 W): 2300 W. 230 V LED lamp load load: up to 200 W. Fluorescent lamp load, with ballast in DUO circuit, or without ballast: 1000 VA. Ambient temperatures: –20 to +50 °C. Dimensions: W 18, D 58 mm.
Type: TLZ12D-plus, staircase lighting timer
| Time display | 1 bis 99 min | |
| Function | 4 Funktionen | |
| Contact type | 1 Schließer | |
| Voltage | 8-230 V | |
| Breaking capacity | 16 A/250 VAC | |
| Connection | Schraubanschluss |
| Country of origin | DE |
| Customs tariff number | 85364900 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
