09.03290.01 | EOZ
Slide switch, On-On, 1 pole, straight, 500 mA/24 VDC, 09.03290.01
Unit Price (€ / pc.)
2.1658 € *
Available: 97 pcs.
Leadtime: On Request **
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1658 €
25 pcs.
1.8445 €
100 pcs.
1.6898 €
250 pcs.
1.6065 €
1000 pcs.
1.4756 €
*incl. VAT plus shipping costs
**Subject to prior sale

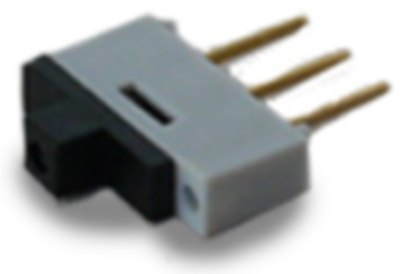

Slide switch, 09.03290.01, EOZ
The 09.03290.01 slide switch is recommended for all PCB applications, it is ideal as a jumper replacement. The slide actuator gives instant recognition of switch position.
Features
- Electrical life 1000 operations
- Cursor position
- Resistance to wave soldering at 250° C, 5 sec
Technical specifications
| Anschluss | Leiterplattenstift | |
| Ausführung | Schiebeschalter | |
| Bauform | gerade | |
| Betätigung | oben | |
| Kontaktoberfläche | vergoldet | |
| Polzahl | 1-polig | |
| Rastermaß | 5.08 mm | |
| Schaltleistung | 500 mA/24 VDC | |
| Schaltstellung | Ein-Ein |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
