X1G005961000312 | Epson

Crystal oscillator, 48 MHz, ±50 ppm, 15 pF, SMD, (L x W x H) 3.2 x 2.5 x 0.8 mm, X1G005961000312

Order No.: 77D667
EAN: 4099879146649
MPN:
X1G005961000312
SG-3225CAN TJGA 48,000000 MHz
Series: SG-3225
Epson

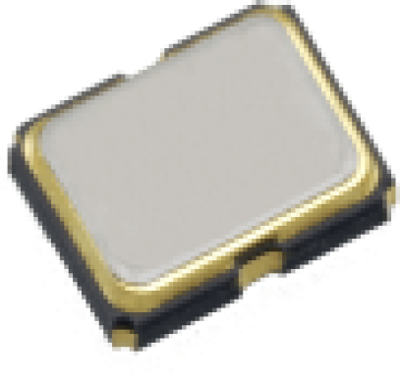

X1G005961000312 Epson Oscillators Image 1

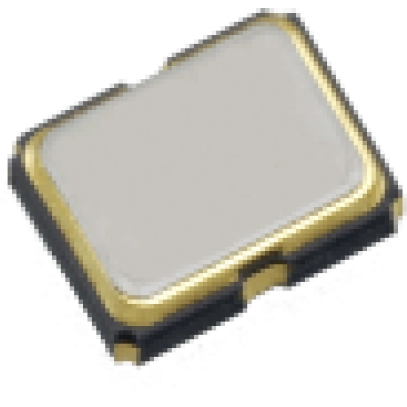

X1G005961000312 Epson Oscillators Image 2
Image may differ
Print
Key Specification:
nominal frequency 48 MHz
Frequency stability ±50 ppm
Assembly SMD
Length 3.2 mm
Width 2.5 mm
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.833 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.833 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Oscillator, X1G005961000312, Epson

Oscillator SG-3225CAN TJGA, 48,000000MHz.
Technical specifications
Width 2.5 mm
Frequency stability ±50 ppm
Height 0.8 mm
Capacity 15 pF
Length 3.2 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
nominal frequency 48 MHz
Show similar products 0
Logistics
Country of origin MY
Customs tariff number 85416000
MSL MSL 1
Original Packaging Reel with 250 pieces
Compliance
RoHS conform Yes
SVHC free Yes
