103-80014 | ept

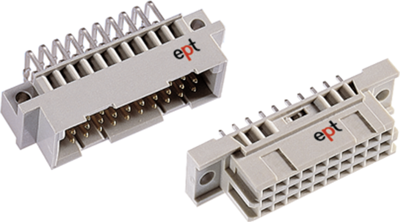

Male connector, type 3C, 20 pole, a-c, pitch 2.54 mm, solder pin, angled, 103-80014
Order No.: 52F7100
EAN: 4099891021290
MPN:
103-80014
Unit Price (€ / pc.)
1.5708 € *
Available: 80 pcs.
Next delivery: 54 pcs. on 2025-01-22
Leadtime: 1 Week **
Total Price:
1.57 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5708 €
25 pcs.
1.3447 €
100 pcs.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Male connector C/3, angled, with solder pins.
For 1.0 mm holes; Maximum operating current at 20 °C: 1.5 A. Contact resistance: max. 20 mohm. Grid: 2.54 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 103–80014, 20–pole, a–c, 3.0 mm, 39 mm
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | 3C | |
| Contact type | pin | |
| Contact row assignment | a-c | |
| Rated current | 1.5 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
