110-40584 | ept

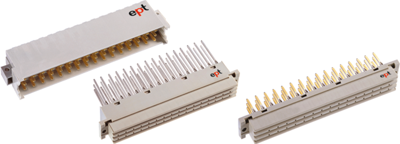

Female connector, type F, 48 pole, z-b-d, pitch 5.08 mm, solder pin, straight, 110-40584
Order No.: 52F7228
EAN: 4099891021801
MPN:
110-40584
Unit Price (€ / pc.)
5.4502 € *
Available: 8 pcs.
Leadtime: 6 Weeks **
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
5.0099 €
50 pcs.
4.5577 €
100 pcs.
4.1055 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector F, straight, flat design, with solder pins.
Technical attributes (type, number of poles, contact row assignments, overall length): 110-40584, 48-pole, z-b-d, 4.6 mm, 95 mm
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | F | |
| Contact type | socket | |
| Contact row assignment | z-b-d | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 48 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
