114-40050 | ept

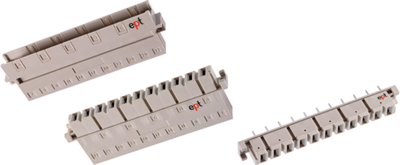

Female connector, type H11, 11 pole, b, pitch 7.62 mm, solder pin, straight, tin-plated, 114-40050
Order No.: 52F7268
EAN: 4099891021924
MPN:
114-40050
Unit Price (€ / pc.)
13.3161 € *
Available: 0 pcs.
Next delivery: 78 pcs. on 2025-03-05
Leadtime: 10 Weeks **
Total Price:
13.32 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3161 €
10 pcs.
12.1142 €
50 pcs.
11.0313 €
100 pcs.
9.9127 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector H11, straight, flat design, with 5.0 mm solder pins.
Pin: 1.2 x 0.8 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 114-40050, 11-pole, 95 mm
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Lötstift | |
| Bauform | H11 | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Kontaktreihenbelegung | b | |
| Nennstrom | 15 A | |
| Orientierung | gerade | |
| Polzahl | 11-polig | |
| Rastermaß | 7.62 mm |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
