115-80065 | ept

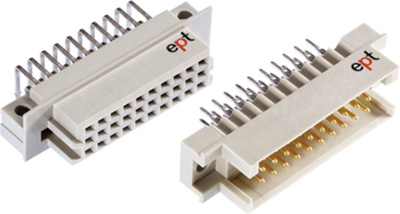

Male connector, type 3R, 30 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 115-80065
Order No.: 52F7150
EAN: 4099891021535
MPN:
115-80065
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Male connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Male connector R/3, straight, with solder pins.
For 1.0 mm holes; Maximum operating current at 20 °C: 1.5 A. Contact resistance: max. 20 mohm. Grid: 2.54 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 115–80065, 30–pole, a–b–c, 4.0 mm, 39.66 mm
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | 3R | |
| Contact type | pin | |
| Contact row assignment | a-b-c | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| Pin number | 30 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
