116-80064 | ept

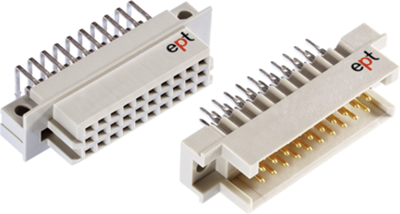

Female connector, type 3R, 30 pole, a-b-c, pitch 2.54 mm, solder pin, angled, 116-80064
Order No.: 52F7152
EAN: 4099891021542
MPN:
116-80064
Unit Price (€ / pc.)
2.6061 € *
Available: 108 pcs.
Leadtime: 5 Weeks **
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6061 €
10 pcs.
2.4395 €
50 pcs.
2.2134 €
100 pcs.
1.9873 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector R/3, angled, with solder pins.
Pin: 0.6 x 0.6 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 116–80064, 30–pole, a–b–c, 3.0 mm, 38.12 mm
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Lötstift | |
| Bauform | 3R | |
| Kontaktart | Buchse | |
| Kontaktreihenbelegung | a-b-c | |
| Nennstrom | 1.5 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 30-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
