302-40064-02 | ept

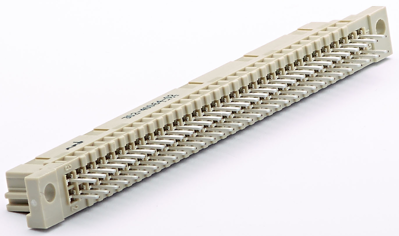

Female connector, type B, 64 pole, a-b, pitch 2.54 mm, solder pin, straight, 302-40064-02
Order No.: 52F7002
EAN: 4099891020750
MPN:
302-40064-02
Unit Price (€ / pc.)
2.9631 € *
Available: 24 pcs.
Next delivery: 33 pcs. on 2025-05-02
Leadtime: 5 Weeks **
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9631 €
10 pcs.
2.6061 €
132 pcs.
2.2967 €
264 pcs.
2.2134 €
1023 pcs.
2.0825 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector B, straight, with solder pins.
Pin: 0.6 x 0.6 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 302-40064-02, 64-pole, a-b, 4.6 mm, 94.9 mm
Technical specifications
| Performance level | 2 | |
| Connection | Lötstift | |
| Design | B | |
| Contact type | Buchse | |
| Contact row assignment | a-b | |
| Rated current | 1 A | |
| Orientation | gerade | |
| Pin number | 64-polig | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
| Original Packaging | Stange mit 33 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
