304-40065-03 | ept

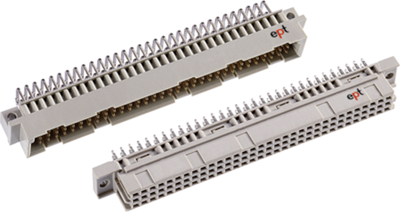

Female connector, type C, 96 pole, a-b-c, pitch 2.54 mm, solder pin, straight, tin-plated, 304-40065-03
Order No.: 52F7056
EAN: 4099891021054
MPN:
304-40065-03
Unit Price (€ / pc.)
3.9984 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector C, straight, with solder pins.
Pin: 0.6 x 0.6 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 304-40065-03, 96-pole, a-b-c, 13 mm, 94.9 mm
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | C | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Contact row assignment | a-b-c | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| Pin number | 96 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
